适用范围--性能--特点
SCOPE OF APPLICATION--PERFORMANCE--CHARACTERISTICS

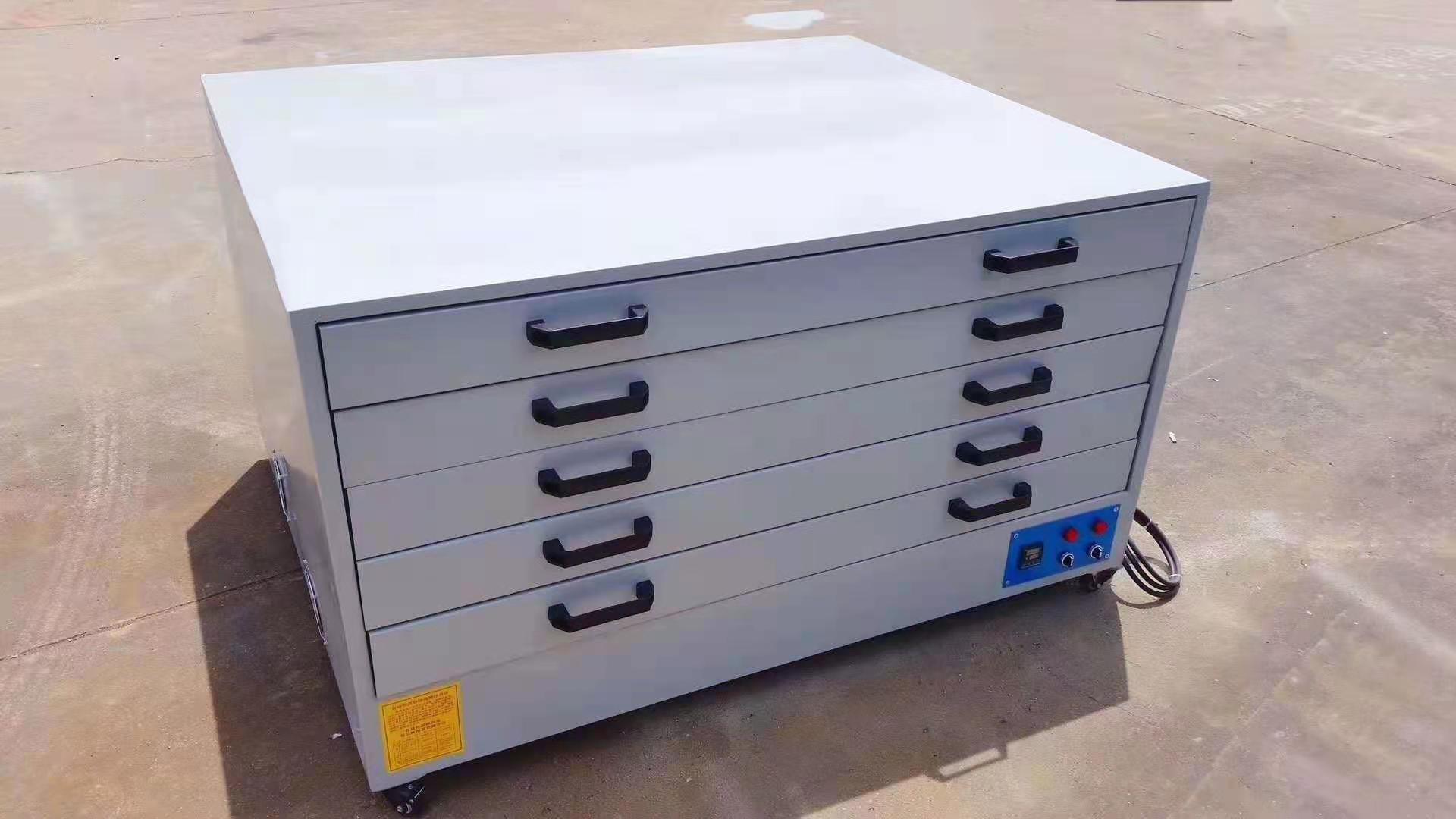

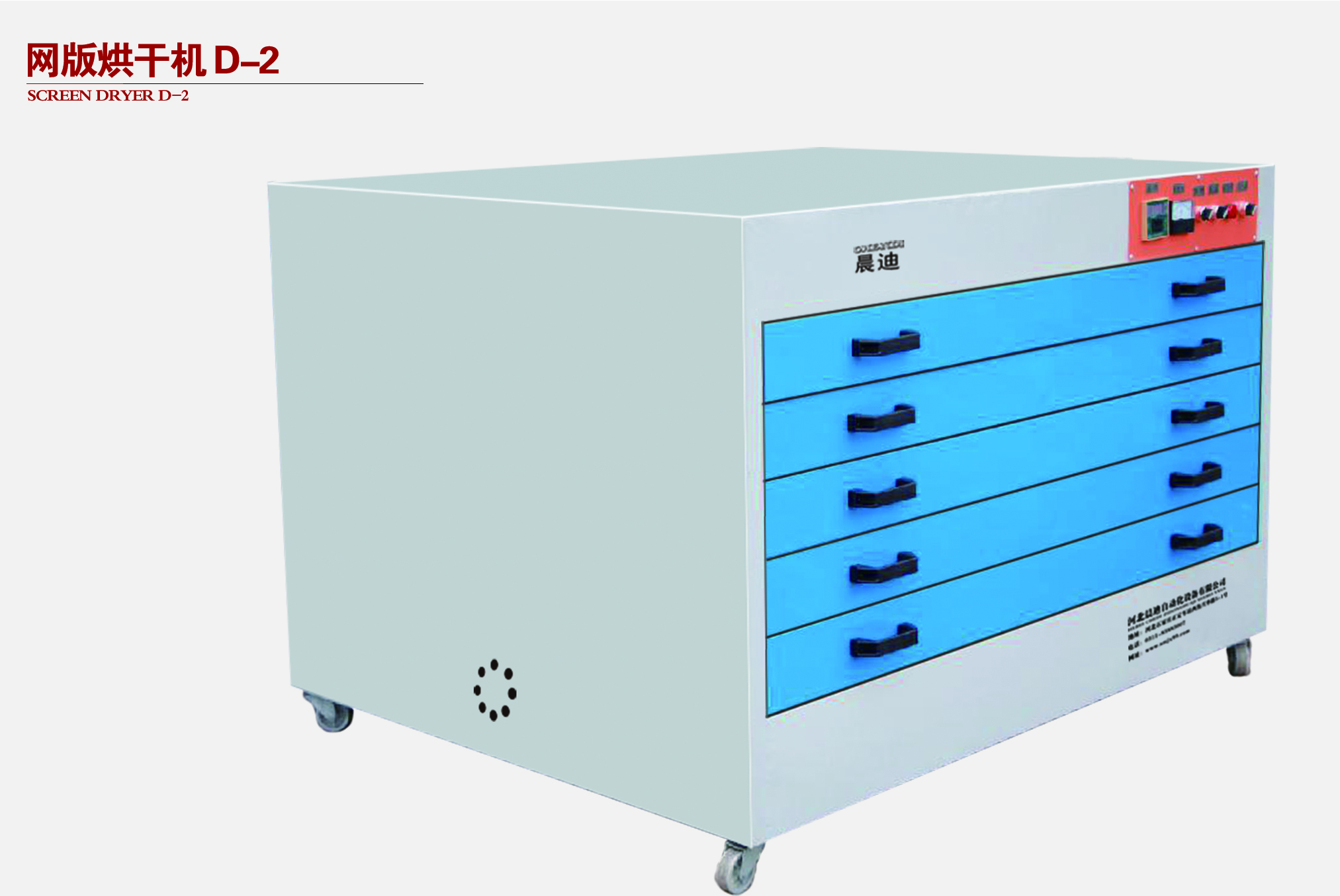

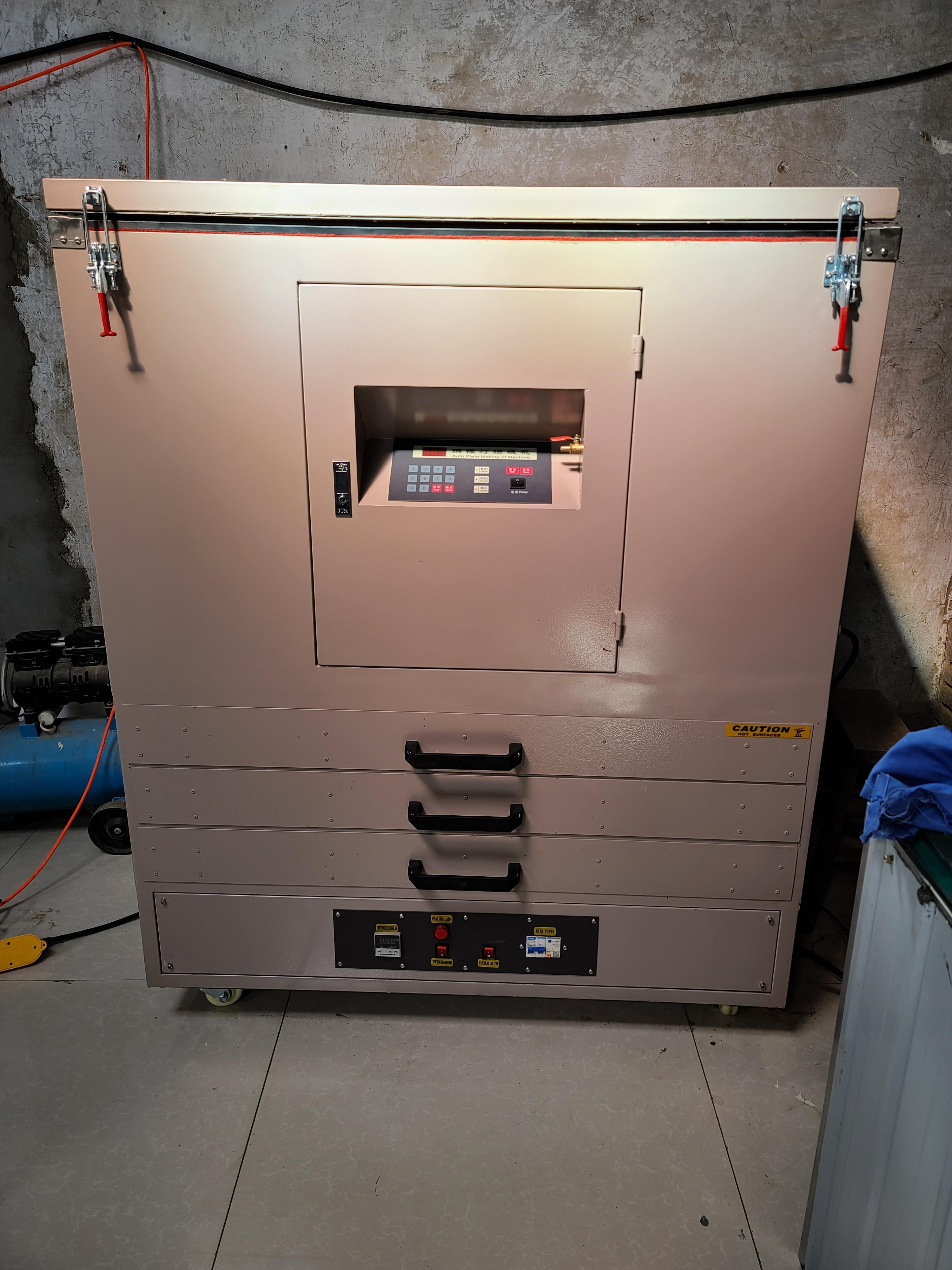

适用于网版感光胶块速干燥，网版冲洗后干燥，网版砂眼修补后干燥等。本烘干机热源使用电热，发热管设计在机身下方，通过离心风机在机内循环运风，独特的运风加压设计，使机内温度匀速均匀，网版烘干效率高，且对网版无伤害，干燥温度和干燥时间可进行自由调节，干燥机内结构位抽屉式，具有气流均匀，烘干质量高等特点。
It is suitable for rapid drying of mesh photosensitive adhensive,after the mesh is washed and dried.after the mesh trachoma is repaired and dried,etc..The heat source of the dryer adopts elestric heat and heating tube design makes the fuselage,the centrifugal fan circulates the wind in the aircraft,and the unigue wind pressure design makes the temperature in the aircraft quickly and evenly.And the mesh drying efficiency is high.the screen plate has no damage,and the drying temperature and drying time can be freely adjusted.The structure of the dryer is drawer type,which has the characteristics of uniform air flow and high drying quality.
主要技术参数：MAIN TECHNICAL PARAMETERS
型号 | MODEL | D-2-1 | D-2-2 |
外形尺寸 | DIMENSION | 1250x1000x1000mm | 1550x1000x1000mm |
网版尺寸 | WEB VERSION SIZE | 800x1000mm | 1000x1200mm |
层数 | LAYER NUMBER | 5 | 5 |
温度范围 | TEMPERATURE RANGE | 0-200 | 0-200 |
电压 | VOLTAGE | 2200V/50HZ | 220V/50HZ |
