Chendi 16-Color 54-Station Automatic Elliptical Printing Machine with Plate Size 60cmX85cm

WeChat
Facebook
X
LinkedIn
Tumblr
￥1.00
Model：TY-16-54
Color："16 color
Series：Automatic screen printing machine line
Brand：Chendi
Dimension：20000*3200*2000mm
Prev: Chendi 18-Color 60-Station Automatic Elliptical Printing MachineTable Size: 60cm x 85cm
Next: Chendi 12-Color 42-Station Automatic Elliptical Printing Machine with Plate Size 58cm x 85cm
Detail





Important attributes

ModelTY-16-54
Color matching16
Workstation54
Maximum pattern area560*700mm
Tabletop area600*850mm
Maximum mesh plate area610*980mm
Maximum air consumption0.8Mp,200L/min
Host power4kw

Electric power of each print head

0.4kw
Maximum power per oven12.6kw
VoltageAC380V/3PH/50HZ
Overall dimensions20000*3200*2000mm



Packaging and shipping information


Gross weight of packaged productsKgDimensions of packaged productsmm

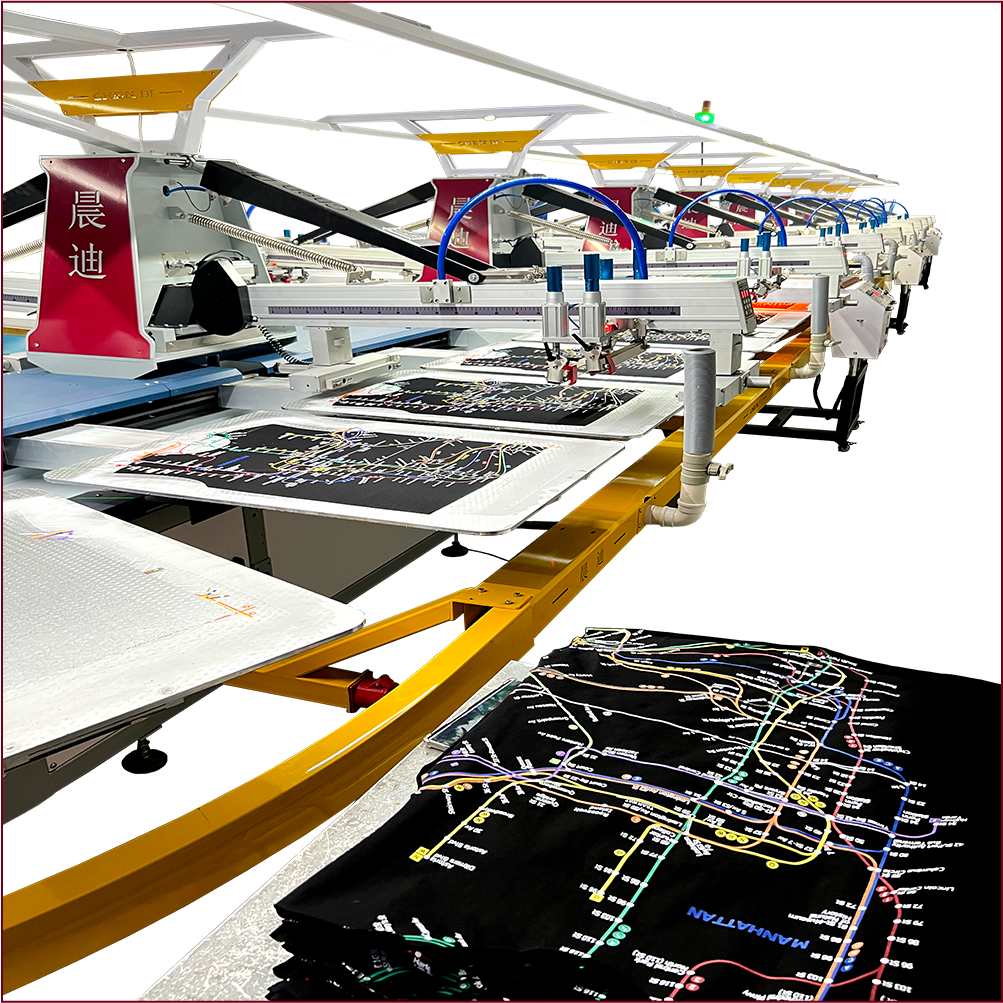

16-color 54-station elliptical machine


Product Description

【 The top choice for Industrialgrade batch Printing 】 Screen printing garment printing machine is durable and durable, suitable for multiple scenarios, a cost-reducing and efficiency-improving wonder


I. Core Advantages: Directly addressing production pain points and empowering the garment printing business





Ii. Detailed Technical Parameter Table: Hardcore Configuration, Data testifies to strength


Automatic garment screen printing machine // Structure

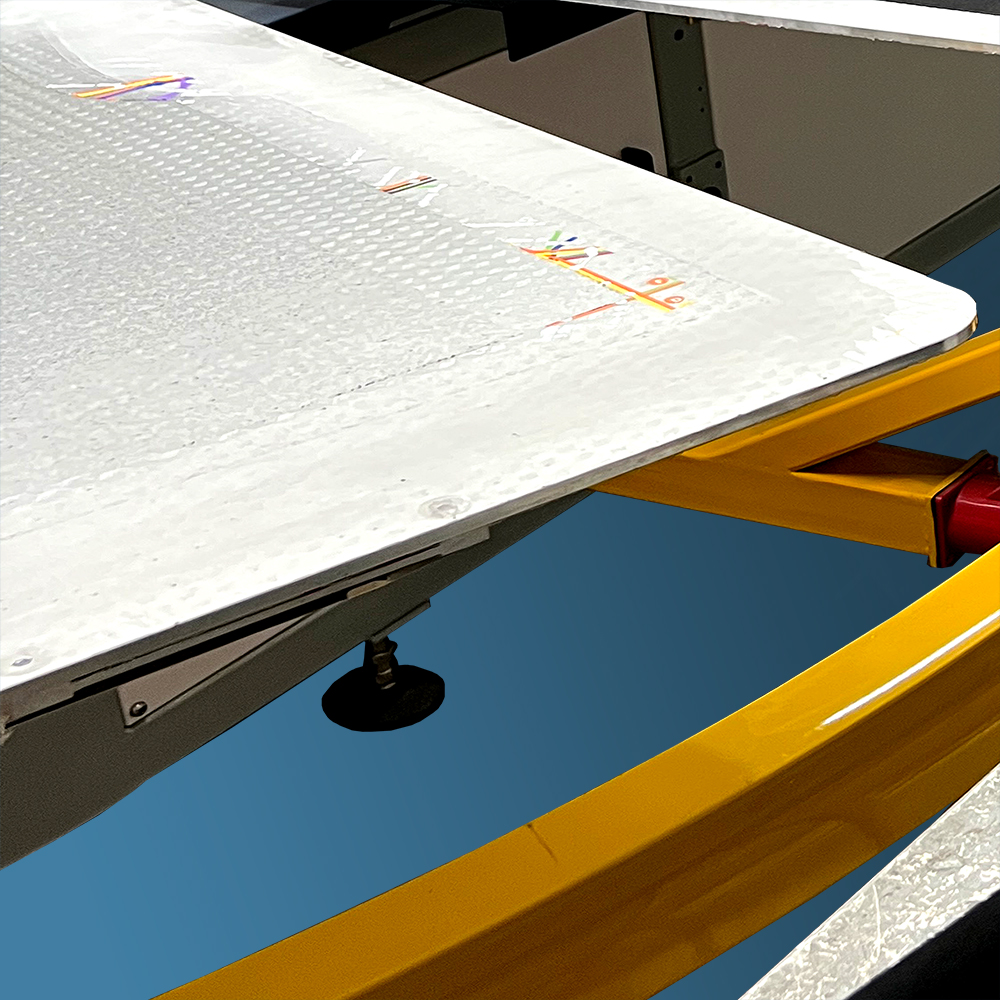

Workbench boardHigh-strength aluminum plate
Operation modeAutomatic rotary printing
Printing materialsCompatible with mainstream clothing fabrics such as cotton, linen, silk, polyester, denim, knitted fabric and sweatshirt fabric
Tabletop controlHigh-precision rotating disk
Ink dryingQuartz halogen rapid heating tube heating and drying
Automatic garment screen printing machine // Usage
Guide

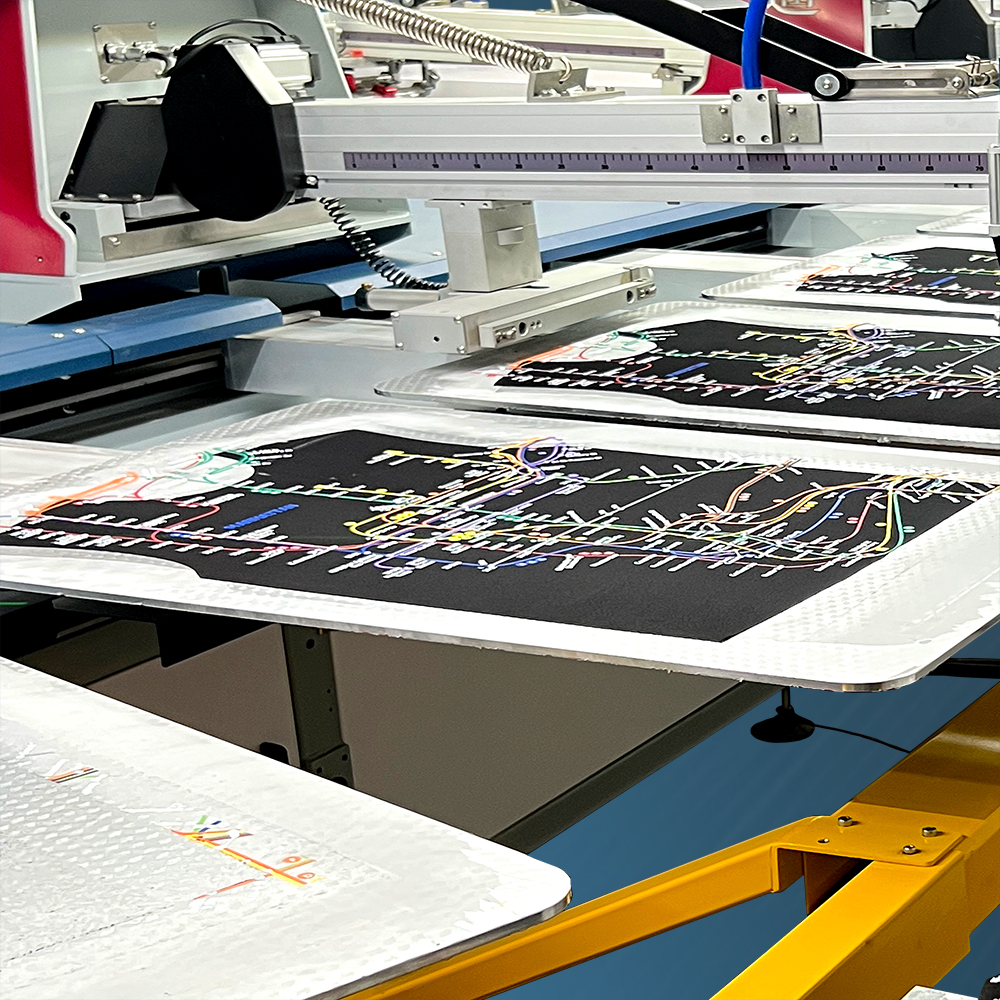

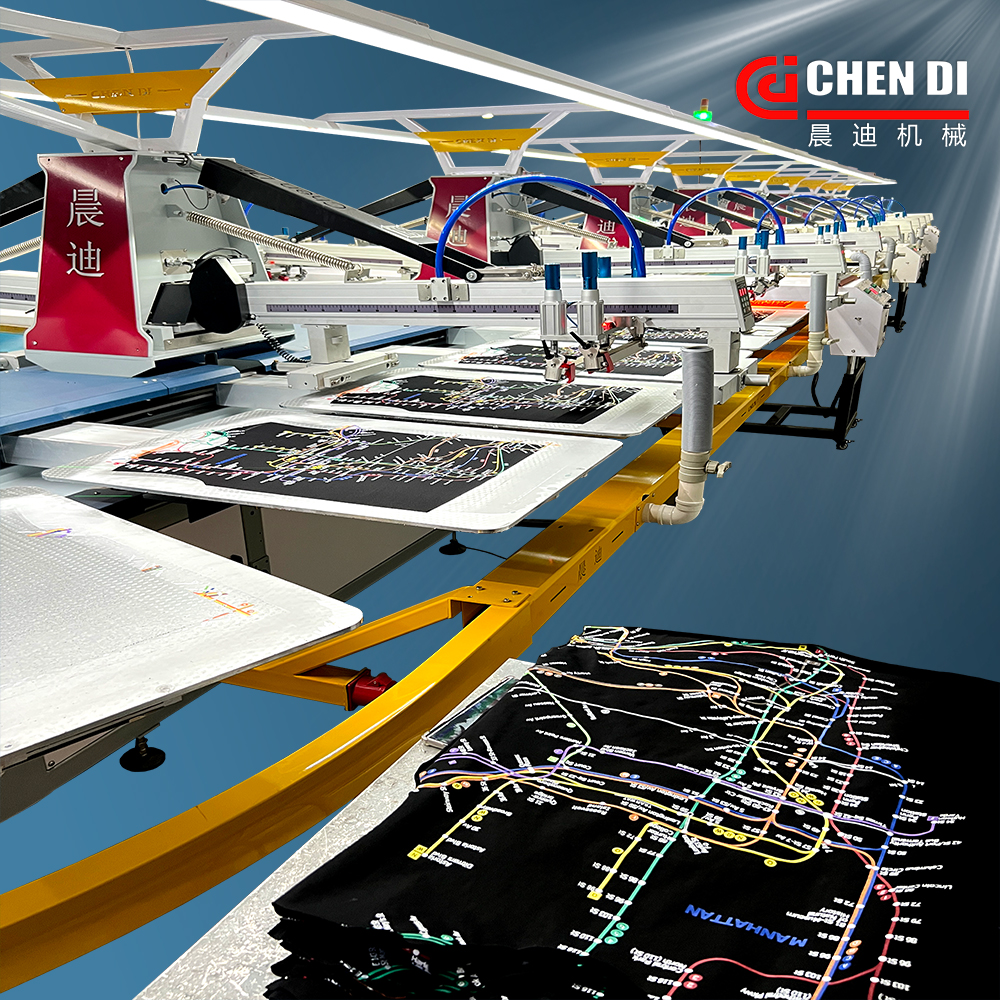

  • This is a fully automatic 16-color 54-station screen printing machine for rotating clothes.

  • It operates smoothly and offers high cost performance. It is widely used in small and medium-sized garment factories, garment customization studios, e-commerce garment experts, and gift and cultural and creative enterprises.

  • The brand-new positioning mechanism ensures accurate positioning with a positioning precision of up to 0.05mm.

  • The central vertical shaft structure design ensures smooth rotation, is lightweight and comfortable, and significantly reduces the labor intensity of the operators.

  • The configuration of quartz halogen rapid heating tube heating and drying device is conducive to the rapid drying of printing paste.

  • The automatic printing table is arranged in a rotating manner, with operators working independently and in coordination, ensuring high printing efficiency.

  • PLC operation technology.

"ApplicationT-shirts, clothes, garments, fabrics, textile printing, cotton and other color and pattern printing
Automatic garment screen printing machine // Parameters
Technical parameters

  • Maximum printing thickness: 0-20 millimeters;

  • Net weight:   kg;

  • Workbench size: 600mm * 850mm;

  • Maximum printing area: 560mm * 700mm;

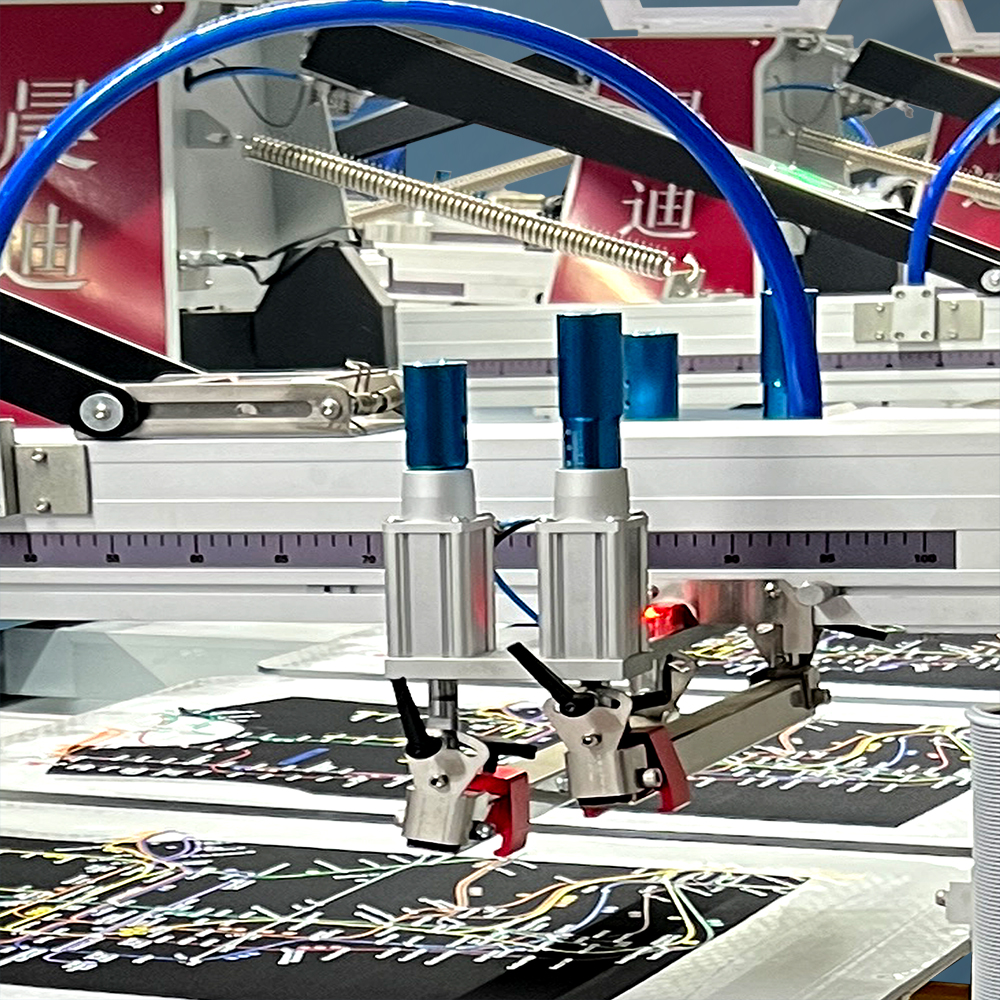

  • Print head number :16

  • Drying mode: Quartz halogen rapid heat tube drying;

  • Dryer wattage: 12.6KW*16

  • The maximum size of the printing screen frame is 610mm * 980mm.

Equipment supply

  • AC380V/3PH/50HZ power supply.

Packaging parameters

  • Gross weight:   kg;

  • The dimensions of the wooden box are :mm.

Automatic garment screen printing machine // Advantages
Advantage

  • Advantage

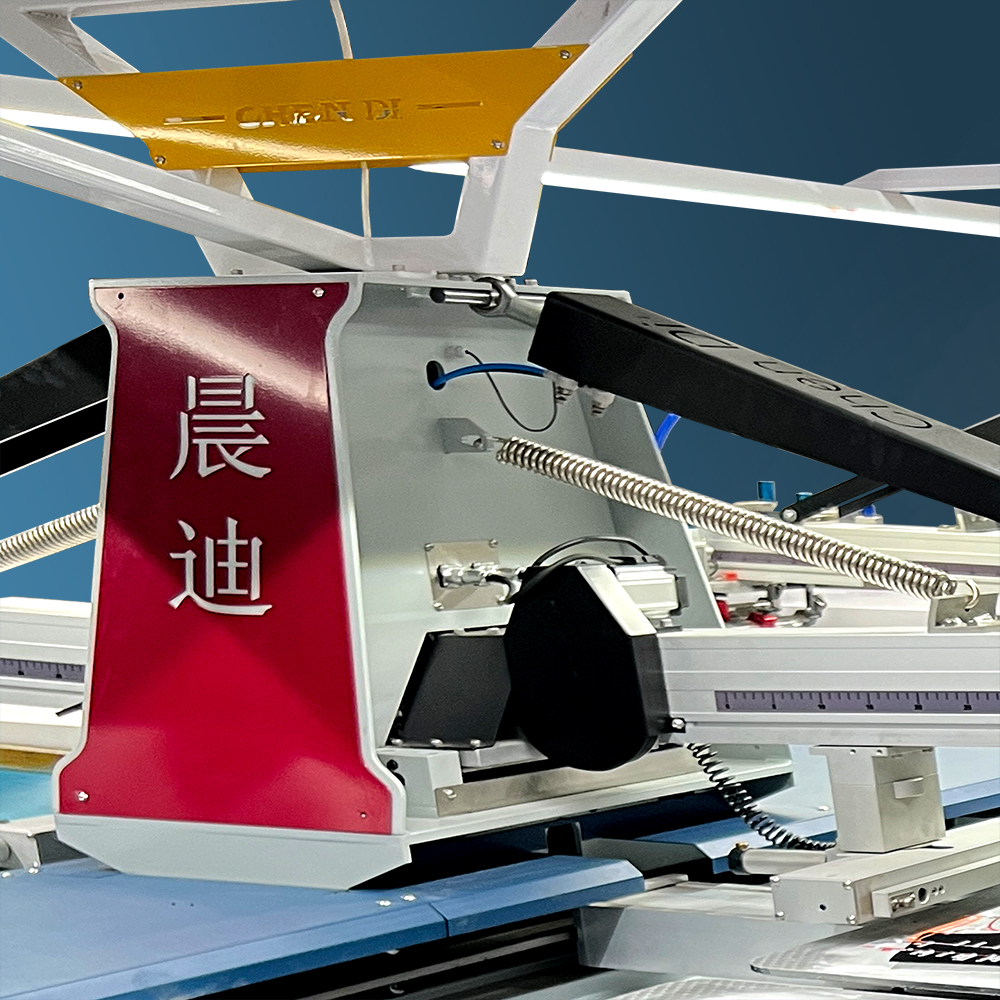

  • The all-steel rotating shaft system ensures free rotation and adaptability.

  • The high-strength support rods make the machine structure rigid.

  • 16-color silk screen printing, precise registration;

  • The printing table can be adjusted according to different objects to be printed.

  • The printing screen frame can rise after printing, thereby increasing the printing speed.

  • The highly stable workbench ensures no shaking during printing.

  • The quartz halogen rapid heat pipe dryer with a machine enables clothes to dry quickly.

  • PLC control ensures easier operation.



Iii. Applicable Scenarios: Full industrial chain coverage, meeting diverse demands





Iv. Service Assurance: Full Escort throughout the process, worry-free procurement
