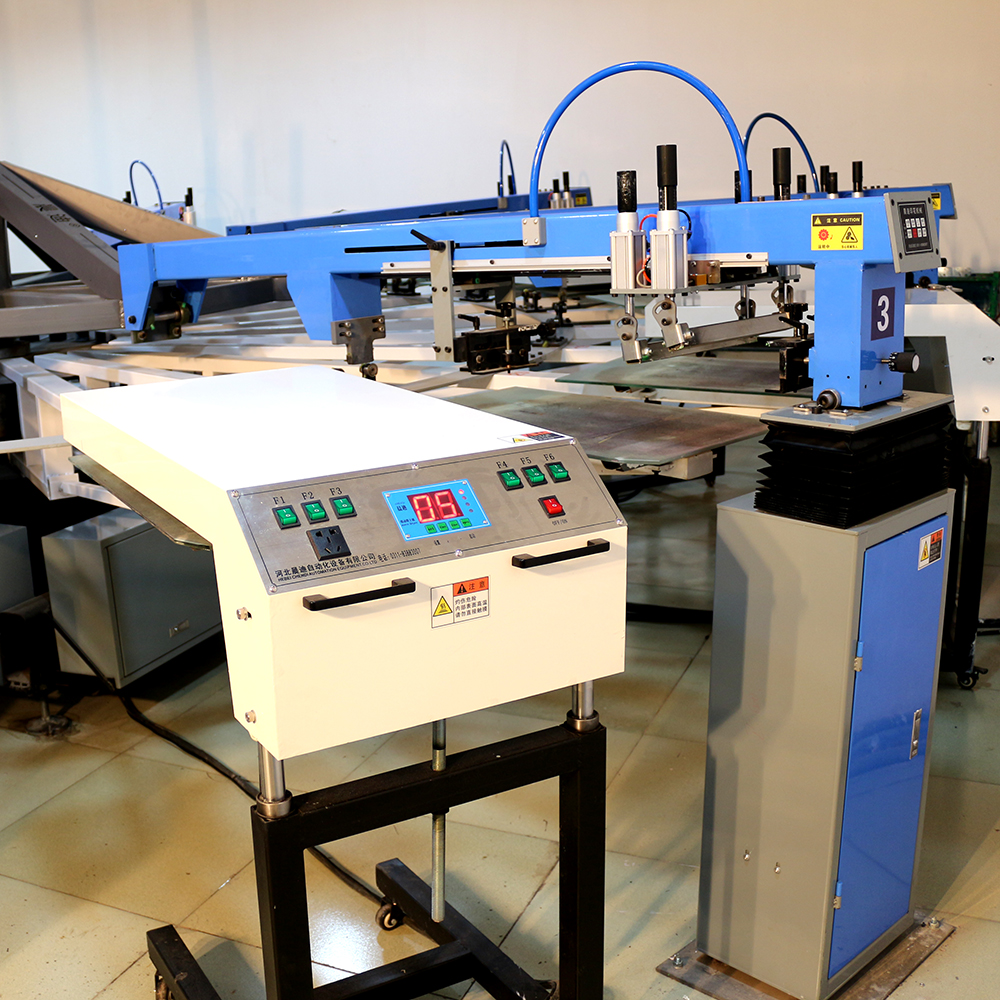

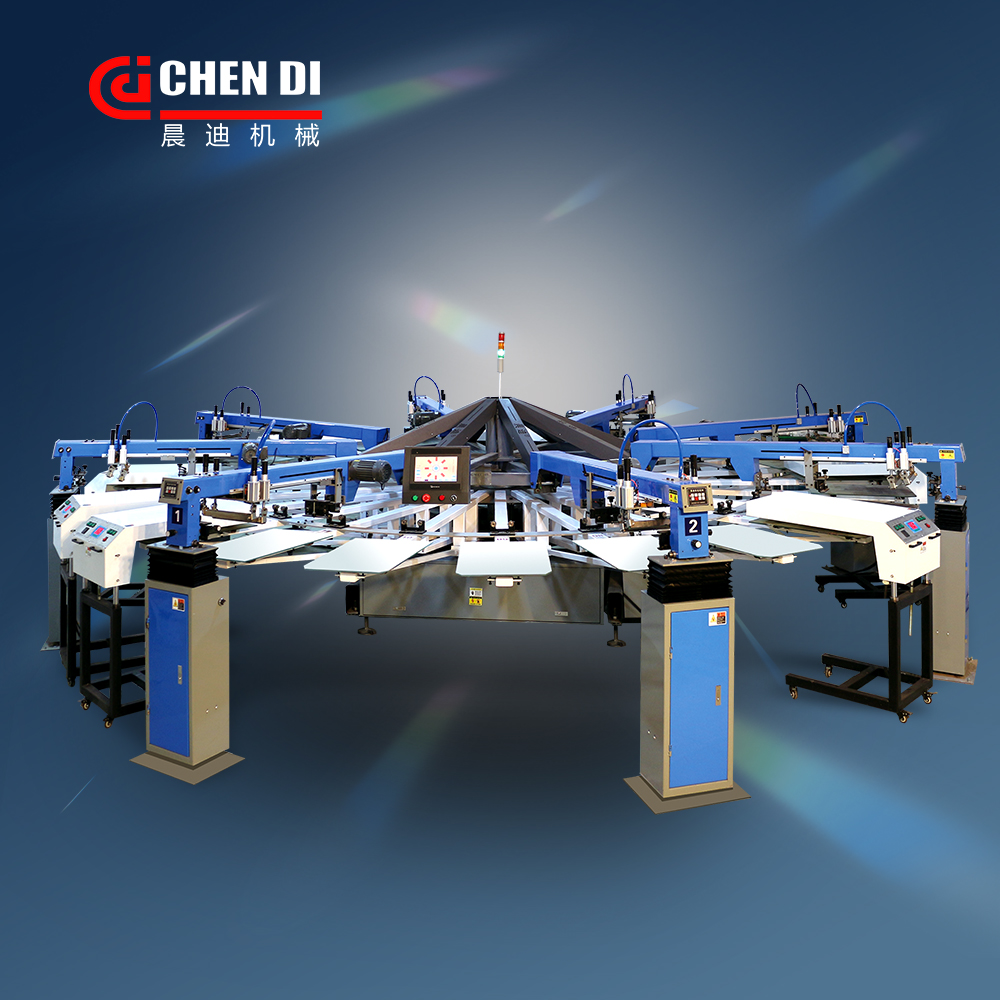

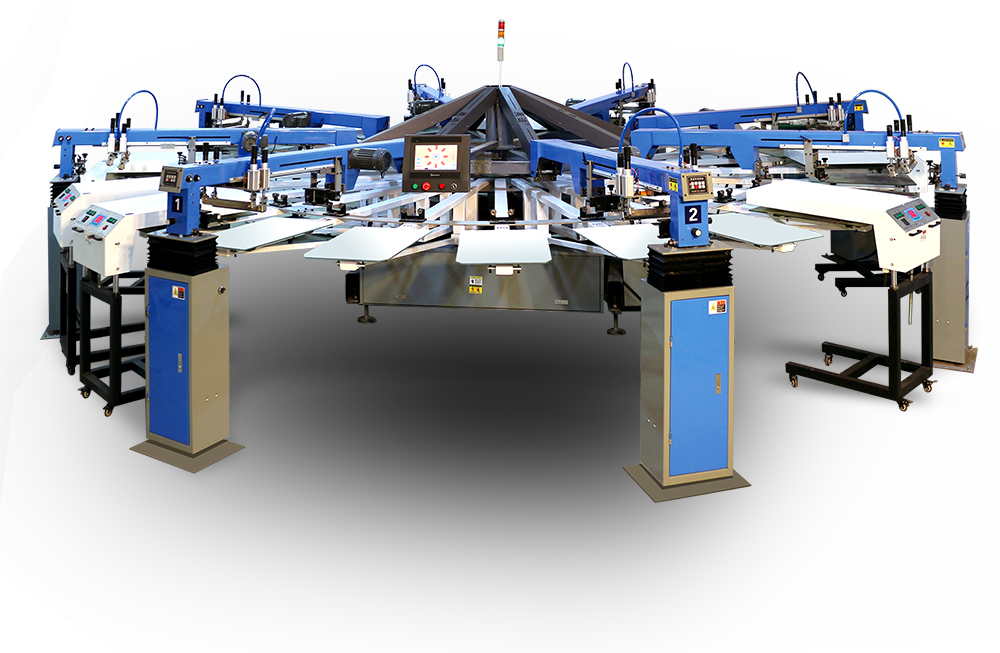

Chendi 8-Color 24-Station Automatic Rotary Octopus Printing Machine with 50cmX70cm Table Size

Important attributes

8-color 24-station circular disc machine

Product Description

【 The top choice for Industrialgrade batch Printing 】 Screen printing garment printing machine is durable and durable, suitable for multiple scenarios, a cost-reducing and efficiency-improving wonder

I. Core Advantages: Directly addressing production pain points and empowering the garment printing business

The automation of garment screen printing machines is also a market trend. In terms of registration accuracy and ease of operation, elliptical automatic screen printing machines have certain advantages, but they take up a large area and have a high cost. For small and medium-sized garment printing factories, octopus-style multi-color screen printing machines still have a considerable market space. The multi-color octopus screen printing machine adopts manual loading, that is, materials and clothes are placed on the workbench by hand. The number of workbenches can be 8-10, 12-14 or more depending on the color of the machine. Some workstations are used for screen printing, while others are for drying. In principle, a dryer should be installed at the workstation to ensure that the surface of the printing paste is dry and to prevent the adhesion of colors. The worktable of the screen printing machine can automatically rotate to the next screen printing position to print the next color. To enhance accuracy, the screen printing machine adopts certain mechanical positioning devices. Meanwhile, the upper and lower sides of the screen are controlled by servo motors. The automatic rotary screen printing machine is another representative of the screen printing machine type where the scraper moves forward and backward. We know that the inclined arm screen printing machine is such a structure, which makes it easier to place and disassemble products. If you are tired of the hard work of manual screen printing machines and do not plan to purchase an oval screen printing machine, then you can consider a disc screen printing machine.

Main features

1.Aluminum workbench board;

2. Electric motion scraper with AC transmission;

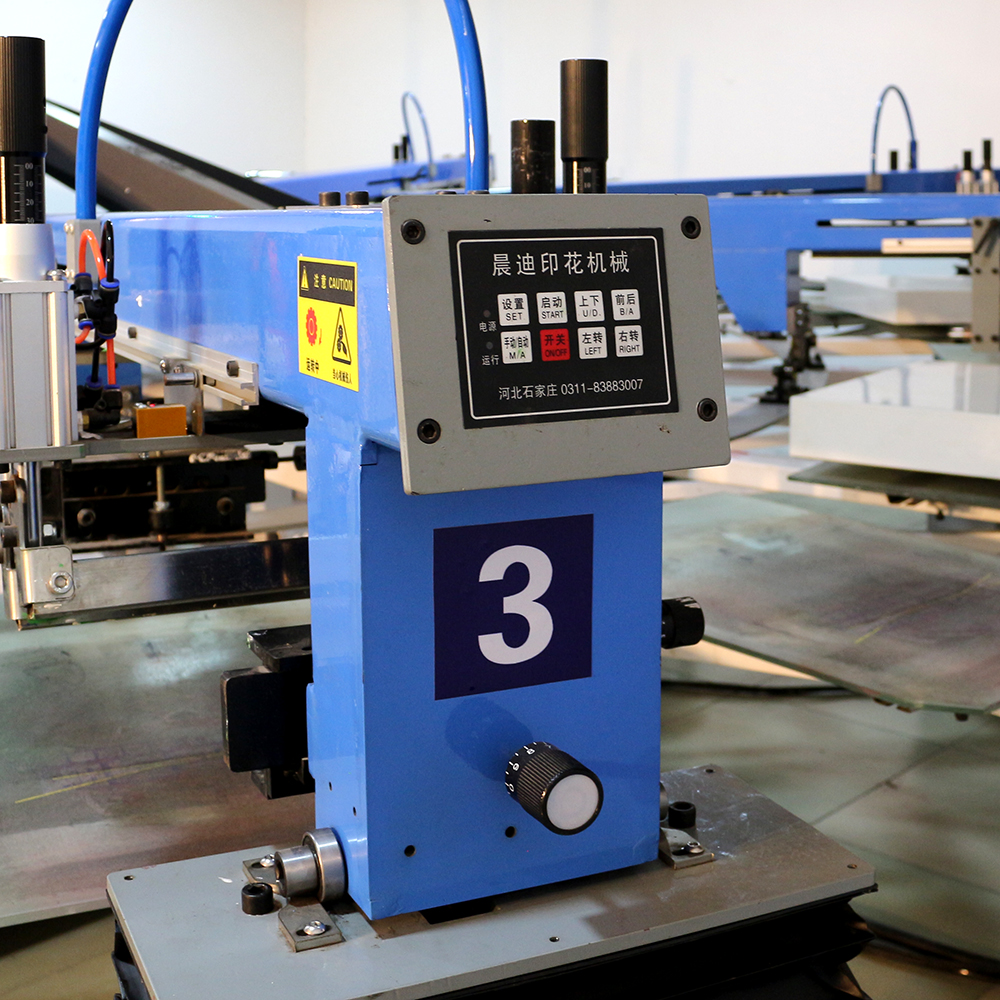

3. Independent control panels on all printing press heads;

4. Selection of pneumatic printing screen frame support: "U" clamp or pin system;

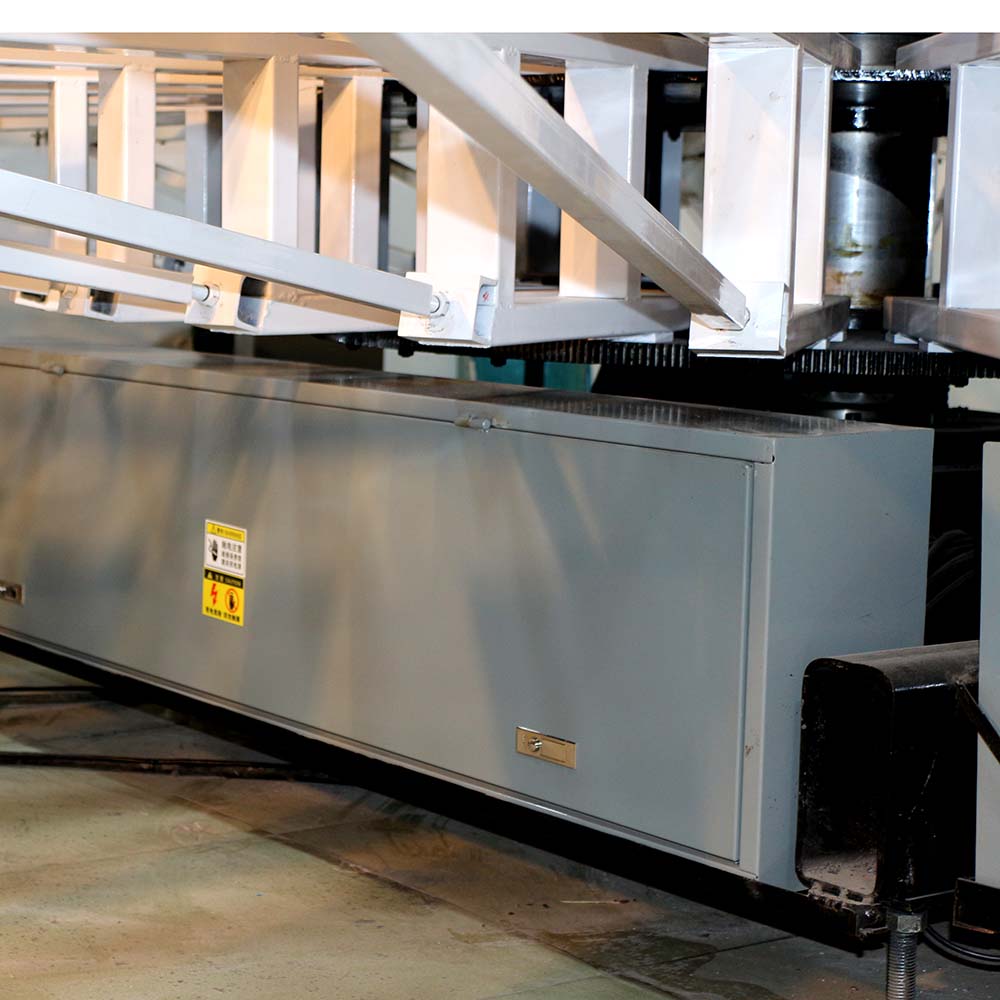

5. The servo motor drives the rotation system to achieve rapid and smooth rotation;

6. The print head with a high lifting position enables quick and easy cleaning of the printing screen frame;

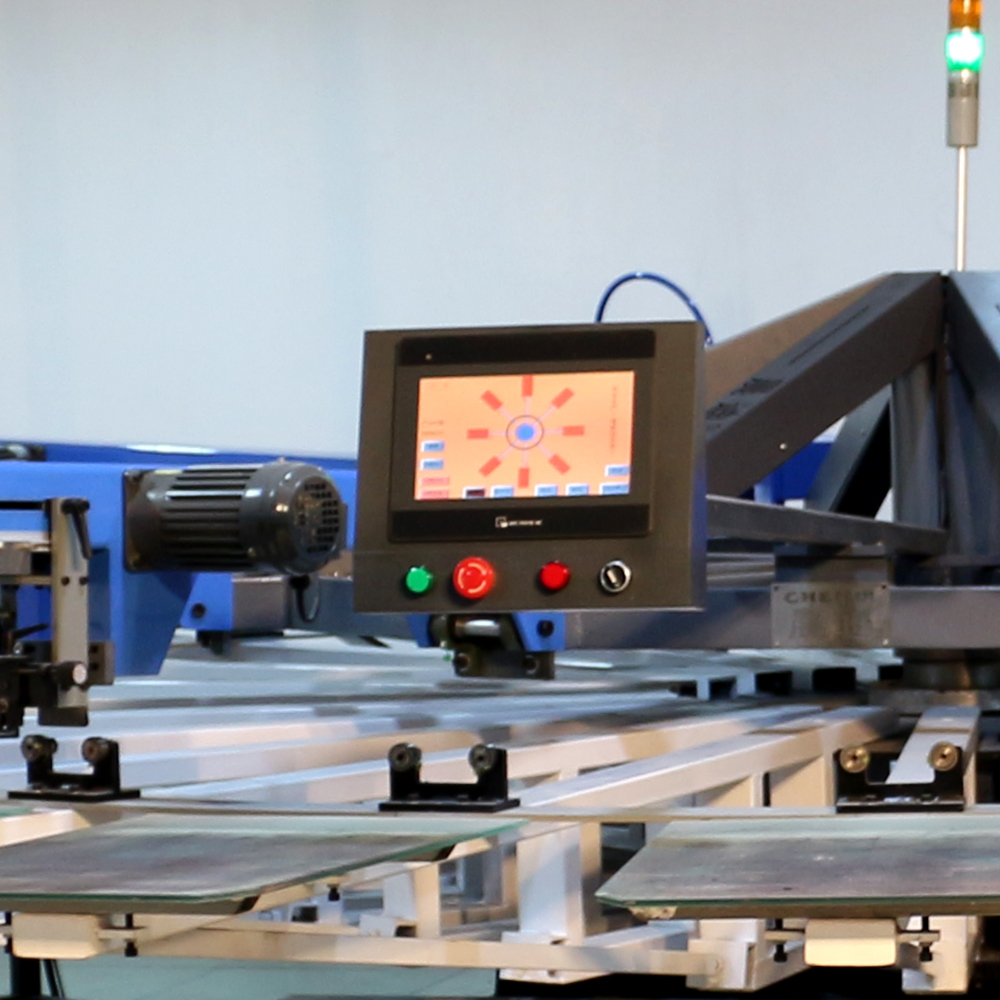

7. Central control panel with PLC LCD touch screen;

8. Micro mesh frame displacement system with vernier scale;

9. Manage the printing and scraper speed, the height and Angle of the scraper, as well as the individual control and adjustment of the stroke length.

Ii. Detailed Technical Parameter Table: Hardcore Configuration, Data testifies to strength

Iii. Applicable Scenarios: Full industrial chain coverage, meeting diverse demands

Iv. Service Assurance: Full Escort throughout the process, worry-free procurement
